Filters for respirators, ventilators and gas lines

A range of filtration solutions which are in common use with respiratory devices used to support patients with respiratory conditions.



Device filtration

Product

Hydrophobic inline filter for O2/gas concentrators
Enquiry
1635001
Box quantity 50
Hydrophobic inline filter for O2/gas concentrators

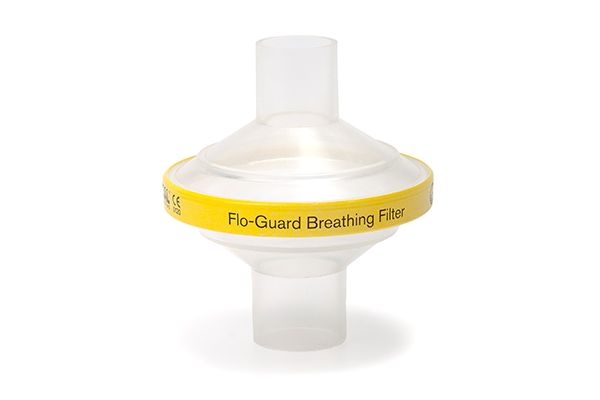

Flo-Guard breathing filter
Enquiry
1690000
Box quantity 50
Flo-Guard breathing filter

Flo-Guard breathing filter

Filtration efficiency >99.99%
Resistance at 30L/min 0.4 cm H2O
Resistance at 60L/min 0.8 cm H2O
Resistance at 90L/min 1.4 cm H2O
Resistance at 120L/min 2.0 cm H2O
Resistance at 150Lmin 2.7 cm H2O
Resistance at 180L/min 3.4 cm H2O
Resistance at 210L/min 4.3 cm H2O
Resistance at 240L/min 5.1 cm H2O
Compressible volume 80ml
Weight 27.8g
Connections 22F-22M

All quoted performance figures are mean values.

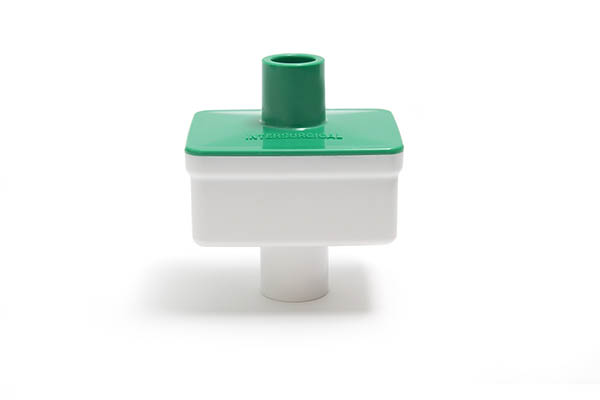

Air-Guard breathing filter
Enquiry
1788000
Box quantity 50
Air-Guard breathing filter

Air-Guard breathing filter

Filtration Efficiency 99.99999%
Resistance at 30L/min
Resistance at 60L/min 1.98ml H2O
Compressible volume 120ml
Weight 53g
Connections
Minimum tidal volume

All quoted performance figures are mean values.

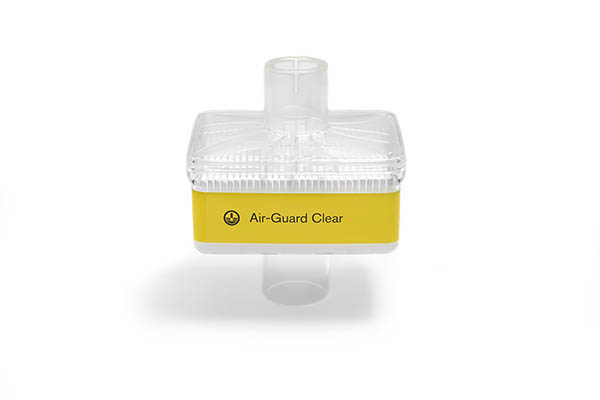

Air-Guard™ Clear breathing filter
Enquiry
1790000
Box quantity 50
Air-Guard™ Clear breathing filter

Air-Guard™ Clear breathing filter

Please note: this product is contraindicated for use at the patient connection end of the breathing system.

Filtration Efficiency >99.9999%
Resistance at 30L/min 0.9 cm H20
Resistance at 60L/min 1.9 cm H20
Compressible volume 120ml
Weight 56g
Connectors 22F-22M/15F
Minimal Tidal volume >360 ml

All quoted performance figures are mean values.
