The Clear-Guard™ range of breathing filters includes a number of options, all designed for use in breathing and anesthetic systems for the protection of the patient, hospital personnel and the equipment from potential microbial contamination.

Designed with a rounded ergonomic polypropylene housing, the Clear-Guard 3 Range represents our most cost-effective filter option, and is available with an integral 90° elbow, reducing the need for an additional catheter mount or separate patient elbow.

The Clear-Guard Midi low volume filter provides a further option with minimum deadspace; ideal for use in anaesthesia.



Breathing filters

Explore

Product

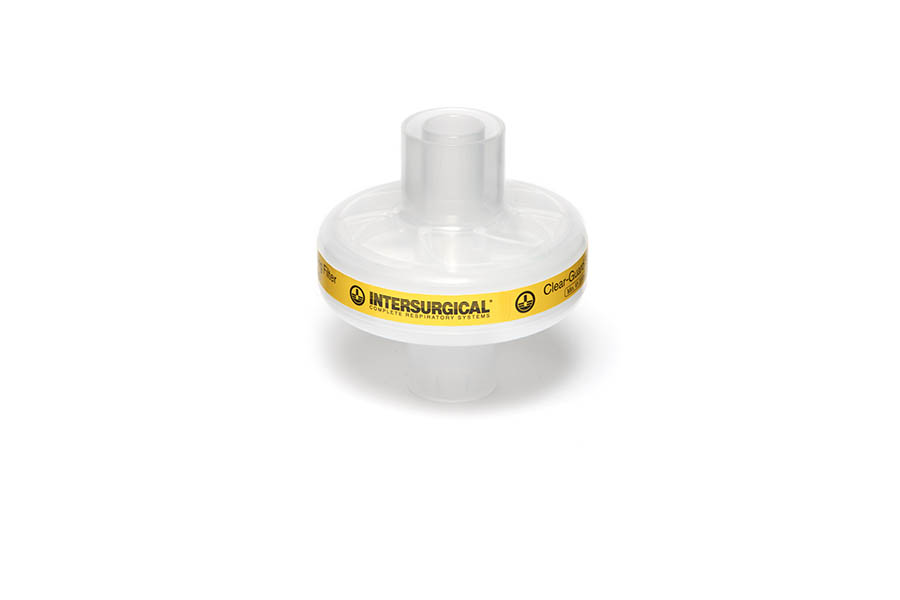

Clear-Guard™3 breathing filter
Enquiry
1544007
Box quantity 150
Clear-Guard™3 breathing filter

Clear-Guard™3 breathing filter

Filtration efficiency >99.99%
Resistance at 30L/min 0.9 cm H2O
Resistance at 60L/min 1.9 cm H2O
Compressible volume 60ml
Weight 27g
Connectors 22F/15M-22M/15F
Minimum tidal volume >200ml

All quoted performance figures are mean values.

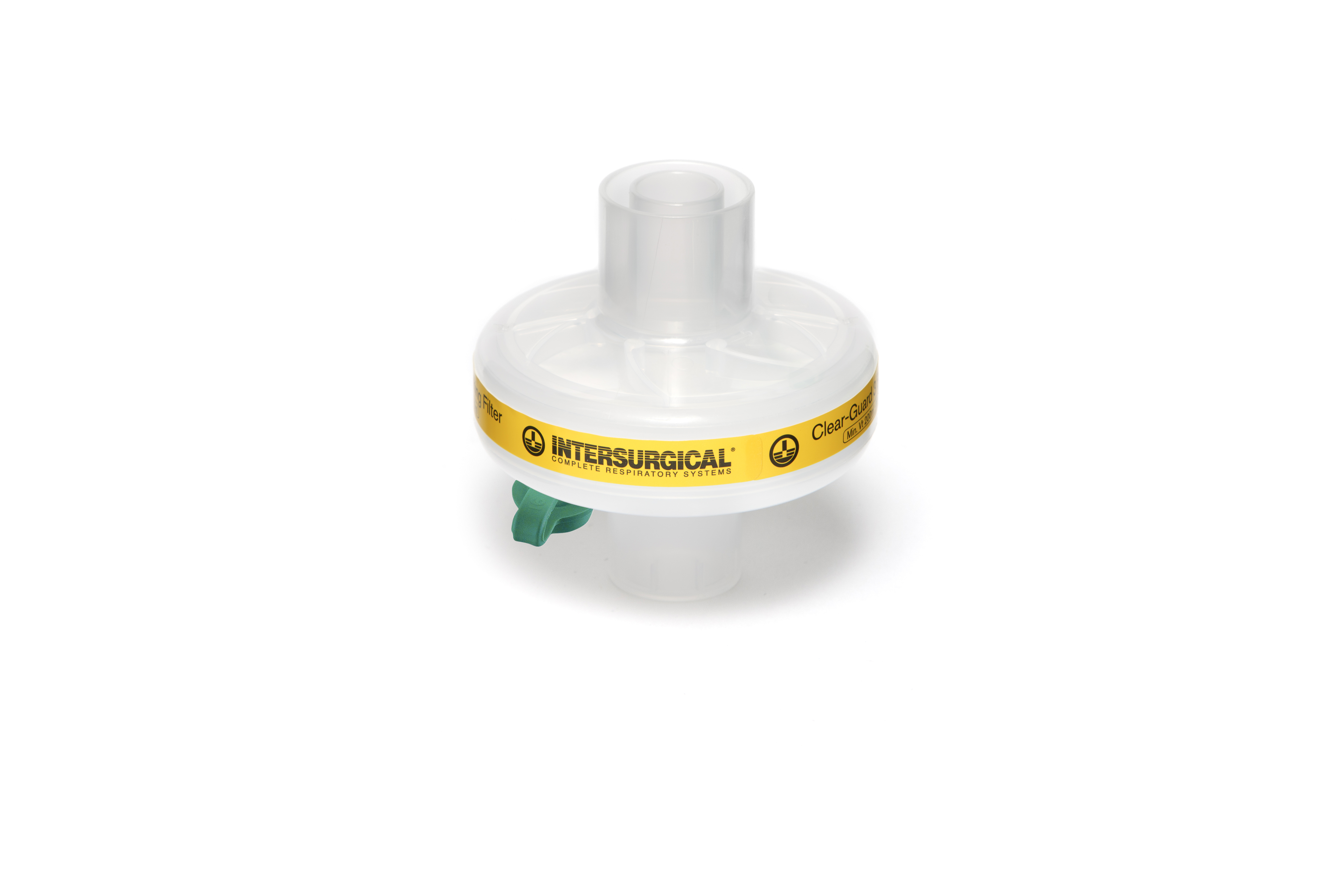

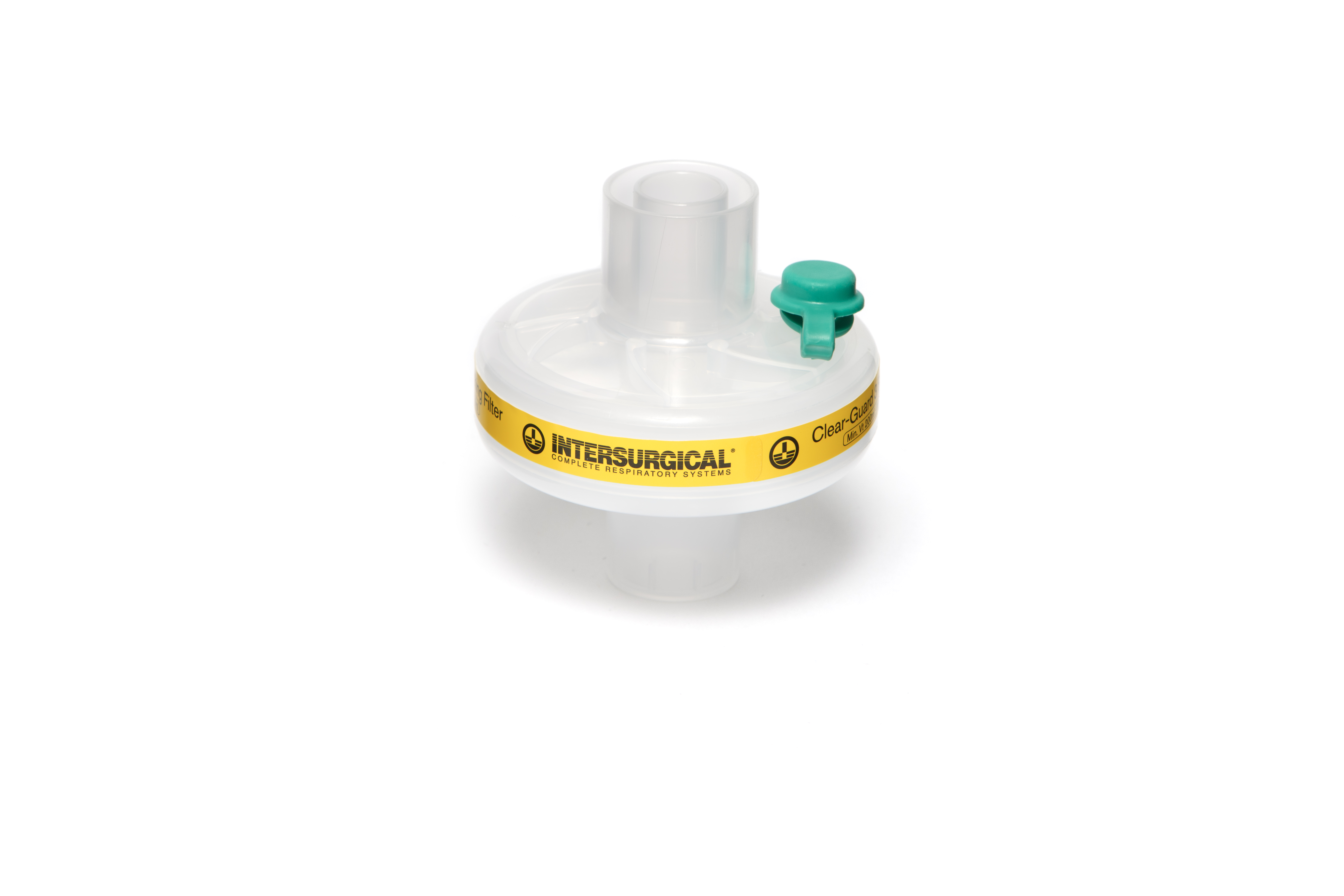

Clear-Guard™3 breathing filter with luer port
Enquiry
1544000
Box quantity 1
Clear-Guard™3 breathing filter with luer port

Clear-Guard™3 breathing filter with luer port

Filtration efficiency >99.99%
Resistance at 30L/min 0.8 cm H2O
Resistance at 60L/min 1.9 cm H2O
Compressible volume 60 ml
Weight 28 g
Connectors 22F/15M-22M/15F plus luer port
Minimum tidal volume >200ml

All quoted performance figures are mean values.

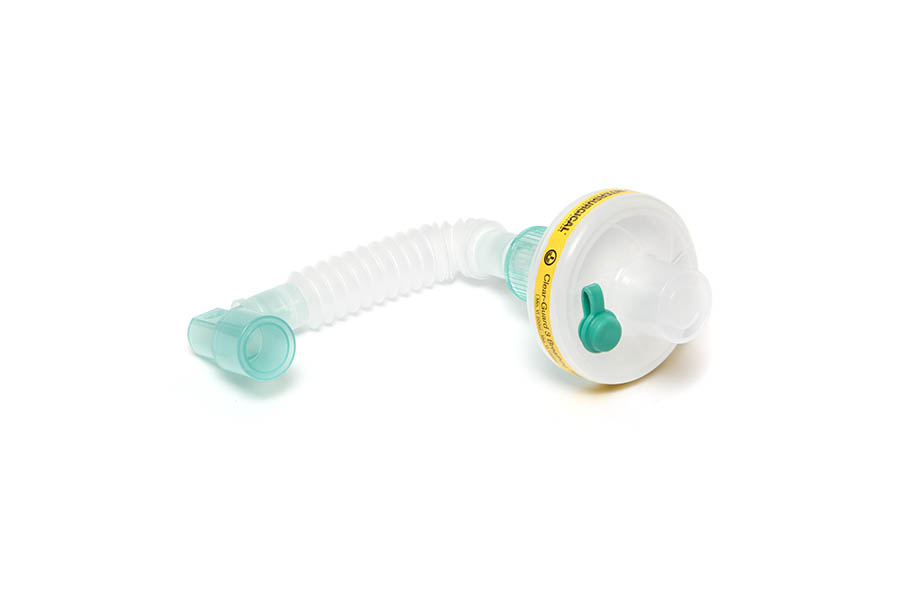

Clear-Guard™3 breathing filter with luer port, Superset catheter mount and fixed elbow
Enquiry
1544351
Box quantity 70
Clear-Guard™3 breathing filter with luer port, Superset catheter mount and fixed elbow

Clear-Guard™3 breathing filter with luer port, Superset catheter mount and fixed elbow

Filtration efficiency >99.99%
Resistance at 30L/min 1.2 cm H2O
Resistance at 60L/min 3.6 cm H2O
Compressible volume 60 ml (Filter only)
Weight 45 g
Connectors 22F/15M-22M/15F
Minimum tidal volume >200ml
Accessories Flexible catheter mount with fixed elbow
(code 3501000, compressible volume 45ml)

All quoted performance figures are mean values.

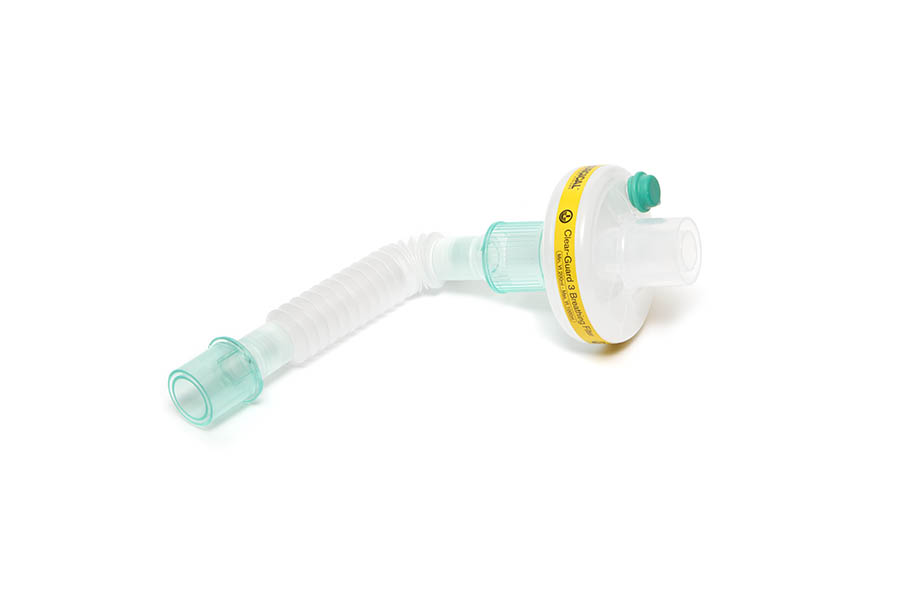

Clear-Guard™ 3 breathing filter with luer port and Superset™ catheter mount
Enquiry
1544011
Box quantity 75
Clear-Guard™ 3 breathing filter with luer port and Superset™ catheter mount

Clear-Guard™ 3 breathing filter with luer port and Superset™ catheter mount

Filtration efficiency  >99.99%
Resistance at 30L/min 0.9 cm H2O
Resistance at 60L/min 2.5 cm H2O
Compressible volume 60 ml (Filter only)
Weight 42 g
Connectors 22F/15M-22M/15F plus luer port
Minimum tidal volume >200ml
Accessories SupersetTM catheter mount
(code 3504000, compressible volume 22-43ml)

All quoted performance figures are mean values.


Clear-Guard™3 breathing filter with luer port, Superset catheter mount and fixed elbow
Enquiry
1544012
Box quantity 75
Clear-Guard™3 breathing filter with luer port, Superset catheter mount and fixed elbow

Clear-Guard™3 breathing filter with luer port, Superset catheter mount and fixed elbow

Filtration efficiency >99.99%
Resistance at 30L/min 1.2 cm H2O
Resistance at 60L/min 3.3 cm H2O
Compressible volume 60 ml (Filter only)
Weight 43 g
Connectors 22F/15M-22M/15F
Minimum tidal volume >200ml
Accessories SupersetTM catheter mount with fixed elbow
(code 3502000, compressible volume 23-43ml)

All quoted performance figures are mean values.

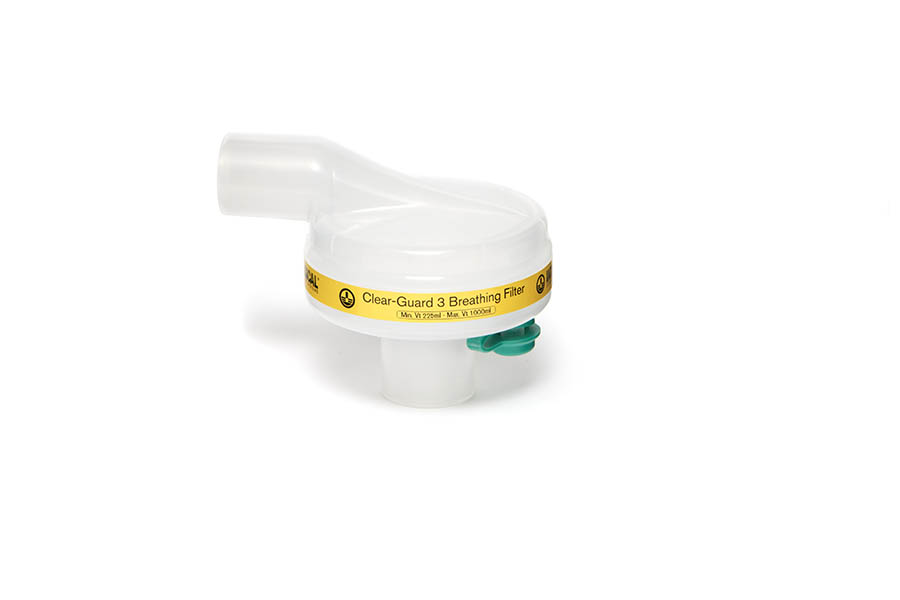

Clear-Guard™3 angled breathing filter with luer port and 22F/15M-22M/15F
Enquiry
1545000
Box quantity 75
Clear-Guard™3 angled breathing filter with luer port and 22F/15M-22M/15F

Clear-Guard™3 angled breathing filter with luer port and 22F/15M-22M/15F

Filtration efficiency >99.99%
Resistance at 30L/min 0.8 cm H2O
Resistance at 60L/min 2.1 cm H2O
Compressible volume 75 ml
Weight 34 g
Connectors 22F/15M-22M/15F
Minimum tidal volume >225ml
Maximum tidal volume 1000ml

All quoted performance figures are mean values.

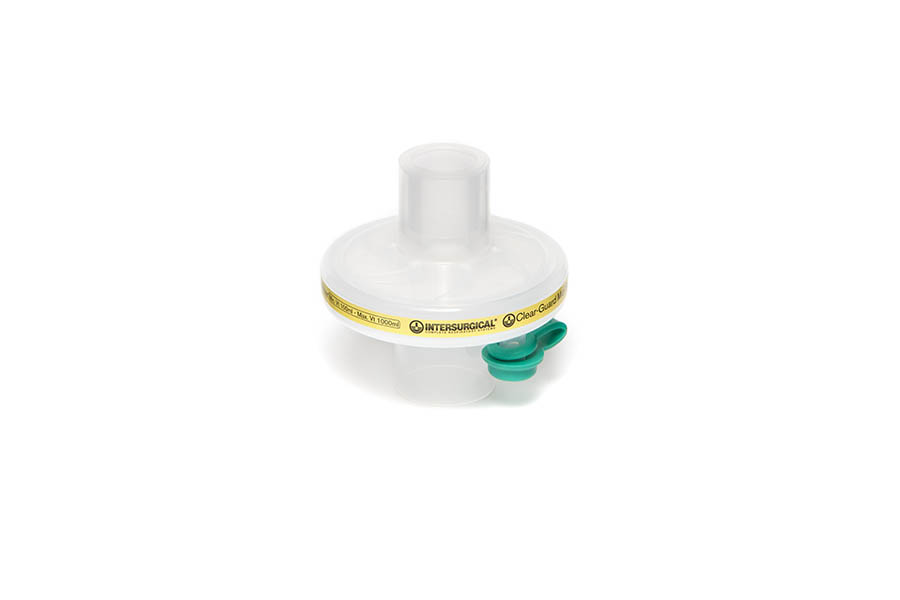

Clear-Guard™ Midi low volume breathing filter with luer port
Enquiry
1644000
Box quantity 100
Clear-Guard™ Midi low volume breathing filter with luer port

Clear-Guard™ Midi low volume breathing filter with luer port

Filtration efficiency >99.9%
Resistance at 30L/min 0.7 cm H2O
Resistance at 60L/min 1.8 cm H2O
Compressible volume 34 ml
Weight 19 g
Connectors 22F-22M/15F
Minimum tidal volume >100ml

Reduces dead space making it ideal for use in anaesthesia.

All quoted performance figures are mean values.

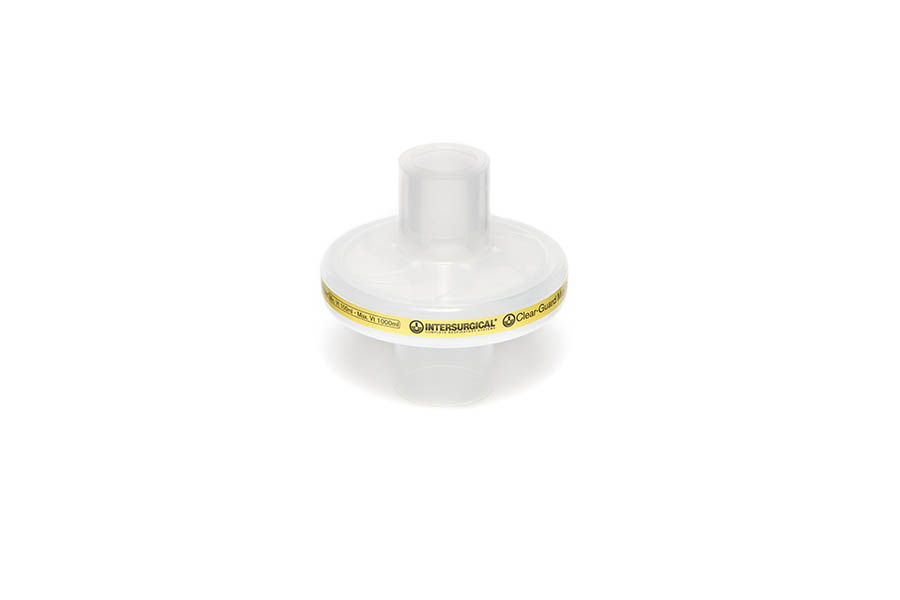

Clear-Guard™ Midi low volume breathing filter with 22F - 22M/15F
Enquiry
1644007
Box quantity 100
Clear-Guard™ Midi low volume breathing filter with 22F - 22M/15F

Clear-Guard™ Midi low volume breathing filter with 22F - 22M/15F

Filtration Efficiency >99.9%
Resistance at 30L/min 0.7cm H2O
Resistance at 60L/min 1.8cm H2O
Compressible volume 34ml
Weight 19g
Connectors 22F-22M/15F
Minimum tidal volume 100ml

All quoted performance figures are mean values.

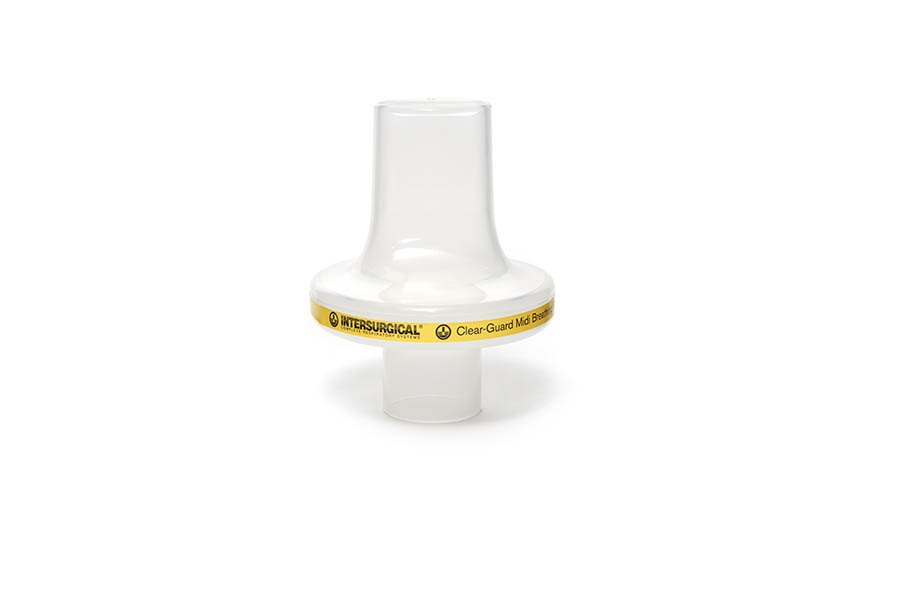

Clear-Guard™ Midi low volume breathing filter
Enquiry
1644137
Box quantity 50
Clear-Guard™ Midi low volume breathing filter

Clear-Guard™ Midi low volume breathing filter

Filtration Efficiency >99.9%
Resistance at 30L/min 1.0 cm H2O
Resistance at 60L/min 3.0 cm H2O
Compressible volume 34 ml (Filter only)
Weight 25 g
Connectors 22F - mouthpiece
Minimum tidal volume >100ml
Accessories Mouthpiece

All quoted performance figures are mean values.

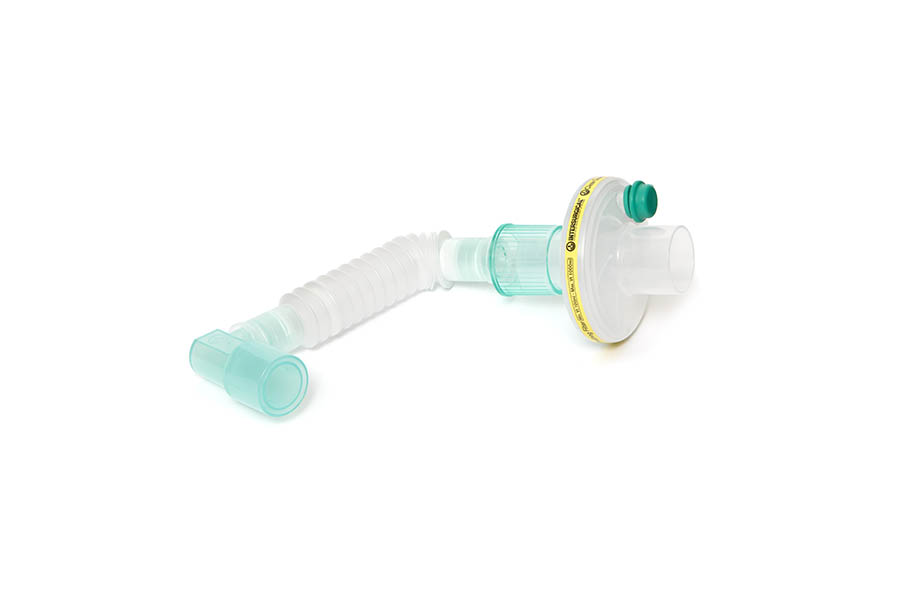

Clear-Guard™ Midi low volume breathing filter with luer port, SuperSet™ catheter mount and fixed elbow
Enquiry
1644012
Box quantity 75
Clear-Guard™ Midi low volume breathing filter with luer port, SuperSet™ catheter mount and fixed elbow

Clear-Guard™ Midi low volume breathing filter with luer port, SuperSet™ catheter mount and fixed elbow

Filtration efficiency >99.9%
Resistance at 30L/min 1.0 cm H2O
Resistance at 60L/min 2.8 cm H2O
Compressible volume 34 ml (Filter only)
Weight 33 g
Connectors 22F-22M/15F with luer port
Minimum tidal volume >100ml
Accessories SupersetTM catheter mount with fixed elbow
(code 3502000, compressible volume 23-44ml)

All quoted performance figures are mean values.

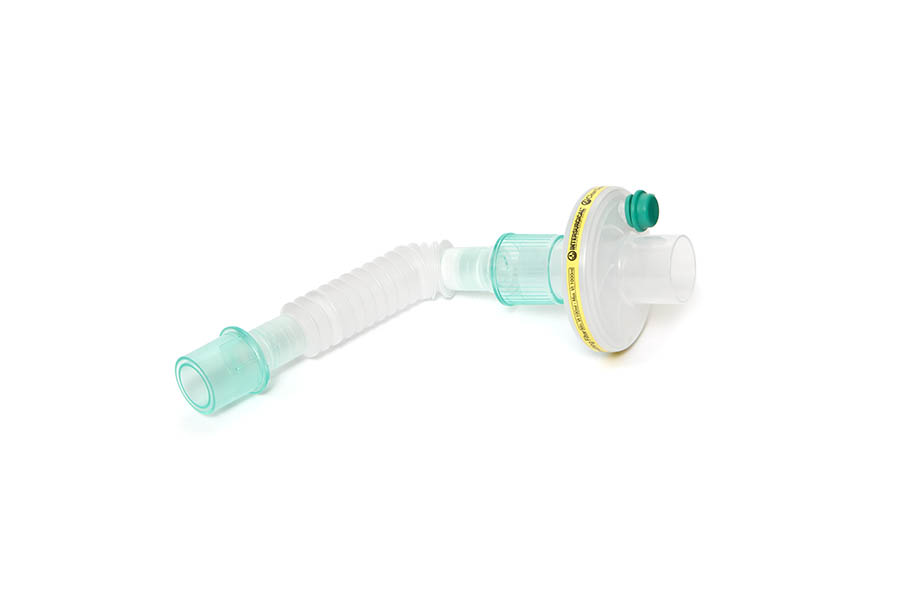

Clear-Guard™ Midi low volume breathing filter with luer port and SuperSet™ catheter mount
Enquiry
1644011
Box quantity 75
Clear-Guard™ Midi low volume breathing filter with luer port and SuperSet™ catheter mount

Clear-Guard™ Midi low volume breathing filter with luer port and SuperSet™ catheter mount

Filtration efficiency >99.9%
Resistance at 30L/min 0.9 cm H2O
Resistance at 60L/min 2.2 cm H2O
Compressible volume 34 ml (Filter only)
Weight 33 g
Connectors 22F-22M/15F
Minimum tidal volume >100ml
Accessories SupersetTM catheter mount
(code 3504000, compressible volume 22-43ml)

All quoted performance figures are mean values.



Videos

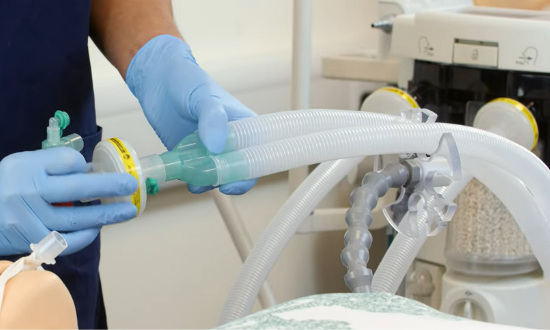

Filter positioning in anaesthesia and critical care
