Filta-Guard™ range - high efficiency

Home Intersurgical product range Airway Management Breathing Filters, HMEs and HMEFs Breathing filters Filta-Guard™ range - high efficiency
The high-efficiency Filta-Guard™ is a dedicated breathing filter designed for use in breathing systems in anaesthesia and intensive care, for the protection of the patient, hospital personnel and the equipment from potential microbial contamination. The Flow diffuser improves performance and optimises resistance to flow.



Breathing filters

Explore

Product

Filta-Guard™ breathing filter
Enquiry
1944000
Box quantity 70
Filta-Guard™ breathing filter

Filta-Guard™ breathing filter

Filtration Efficiency >99.999%
Resistance at 30L/min 1.0cm H2O
Resistance at 60L/min 2.3cm H2O
Compressible volume 67ml
Weight 40g
Connections 22F-22M/15F
Minimum tidal volume >200ml

All quoted performance figures are mean values.

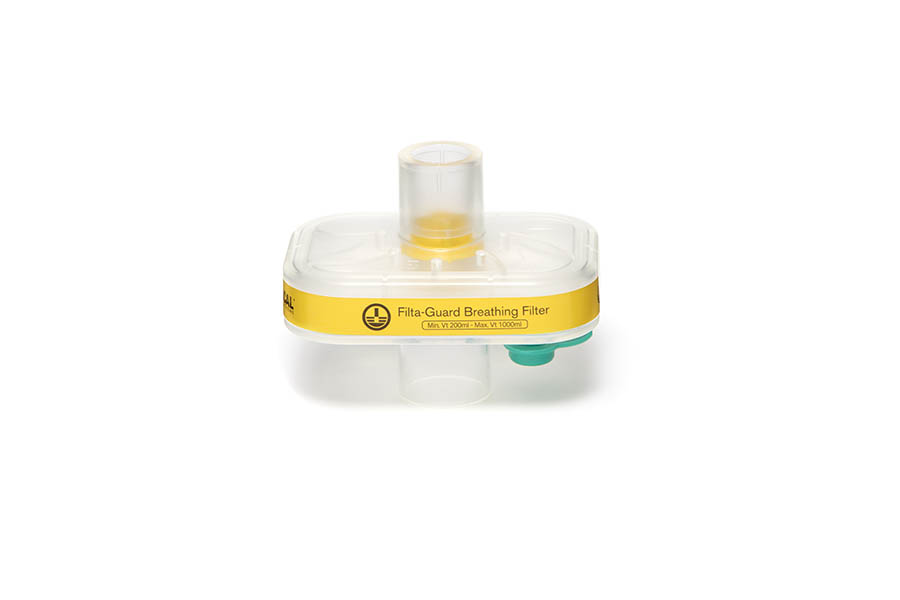

Filta-Guard™ breathing filter with luer port
Enquiry
1944003
Box quantity 70
Filta-Guard™ breathing filter with luer port

Filta-Guard™ breathing filter with luer port

Filtration Efficiency >99.999%
Resistance at 30L/min 1.0 cm H2O
Resistance at 60L/min 2.48 cm H2O
Compressible volume 67ml (Filter only)
Weight 41g
Connection 22F-22M/15F with luer port
Minimum tidal volume >200ml

All quoted performance figures are mean values.

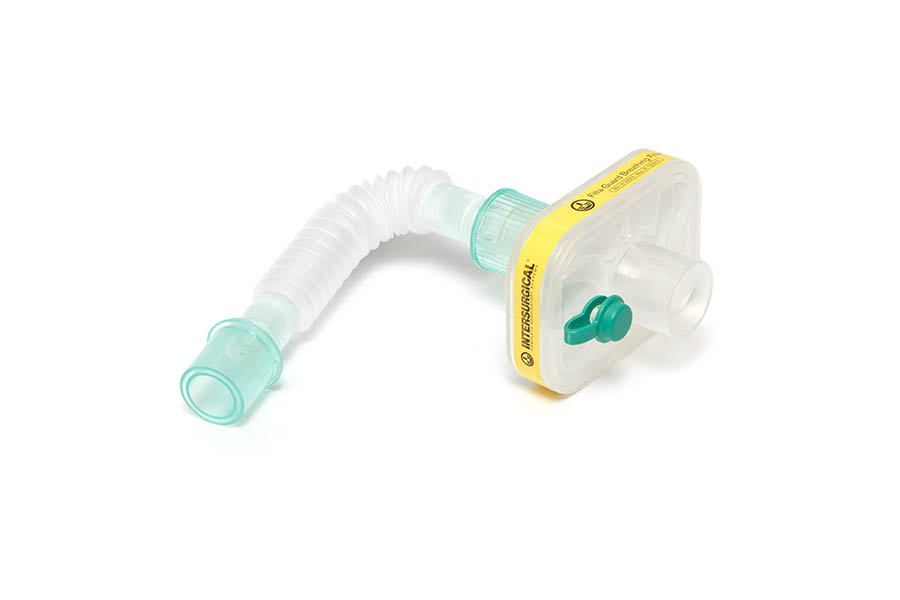

Filta-Guard™ breathing filter with luer port and SuperSet™ catheter mount
Enquiry
1944011
Box quantity 20
Filta-Guard™ breathing filter with luer port and SuperSet™ catheter mount

Filta-Guard™ breathing filter with luer port and SuperSet™ catheter mount

Filtration Efficiency >99.999%
Resistance at 30L/min 1.1 cm H2O
Resistance at 60L/min 2.8 cm H2O
Compressible volume 67ml (Filter only)
Weight 54g
Connection 22F-22M/15F
Minimum tidal volume >200ml
Accessories SupersetTM catheter mount
(code 3504000, compressible volume 22-43ml)

All quoted performance figures are mean values.


Videos

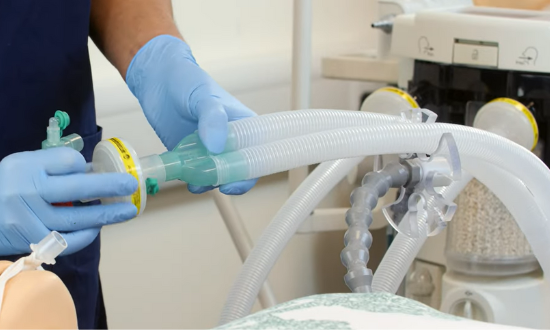

Filter positioning in anaesthesia and critical care

Downloads

Respiratory patient pathway catalogue (Issue 1) Respiratory patient pathway catalogue (Issue 1)
