The i-gel® Plus represents one of the most significant advances in the design of supraglottic airways since the original i-gel® was introduced in 2007. It combines all the features and benefits of standard i-gel® and the i-gel® O2 with a number of key product enhancements, to help improve performance and safety and optimise ease of use.

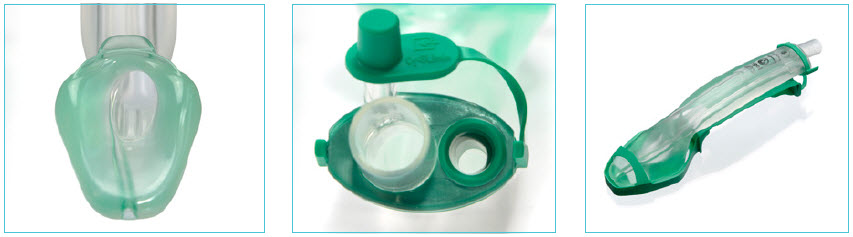

i-gel plus x 3 images

i-gel® Plus product improvements

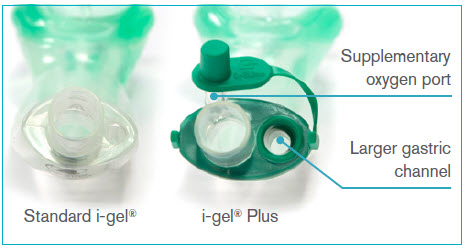

Larger gastric channel - allows for the insertion of the larger gastric tube

1. Supplementary oxygen port
2. Larger gastric channel



igel_plus_larger_gastric_channel

Intubation ramp - optimises use as a conduit for intubation

1. Intubation ramp to optimise use as a conduit for intubation


i-gel plus image

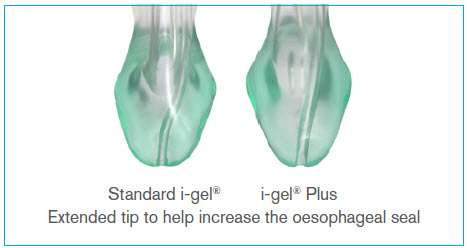

Longer cuff tip - to help improve the oesophageal seal intubation

1. Standard i-gel®
2. i-gel® Plus



igel_plus_longer_cuff_tip

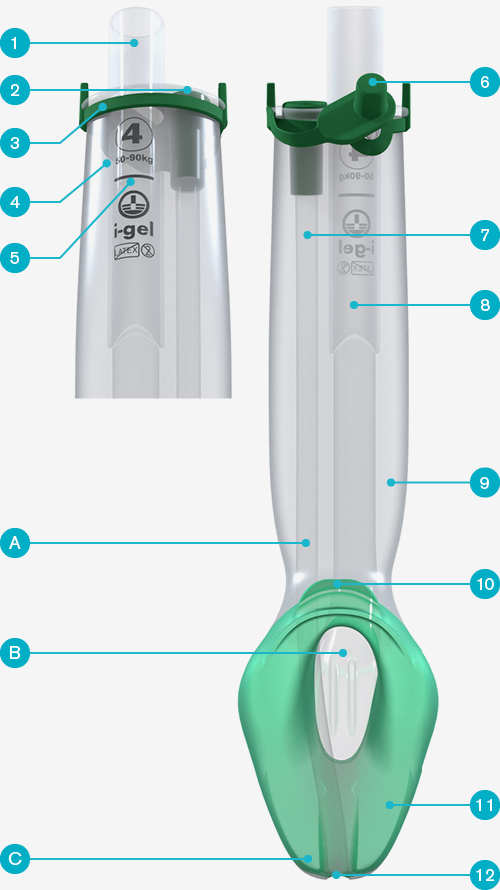

i-gel®Plus features and benefits

1. 15mm connector - Reliable connection to any standard catheter mount or connection

2. Proximal end of gastric channel

3. Colour coded hook ring - To secure the i-gel® Plus in position with the airway support strap

4. Clearly displayed product information - For quick easy reference Includes confirmation of size and weight guidance

5. Position guide

6. Supplementary oxygen port - For the administration of passive oxygenation as a component of cardiocerebral resuscitation (CCR)

7. Gastric channel - Enhances patient safety by providing a mechanism for the management of regurgitant fluid

8. Integral bite block - Reduces the possibility of airway channel occlusion

9. Buccal cavity stabiliser - Aids insertion and eliminates the potential for rotation

10. Epiglottic rest - Reduces the possibility of epiglottis ‘down folding’ and airway obstruction

11. Non-inflatable cuff - Eliminates the need for cuff inflation after insertion, allowing easy and rapid insertion

12. Distal end of gastric channel


i-gel® Plus added benefits
A. Larger gastric channel - To enable insertion of a a larger gastric tube

B. Intubation ramp - To optimise use as a conduit for intubation

C. Longer cuff tip - To help enhance the oesophageal seal

Igel_plus_features_and_benefits_image

Ordering information

i-gel® Plus is available in three adult sizes. Each device is supplied sterile in a clear rigid pack. This unique design ensures protection of the device both in transit and storage. i-gel® Plus is supplied in boxes of 10 units.

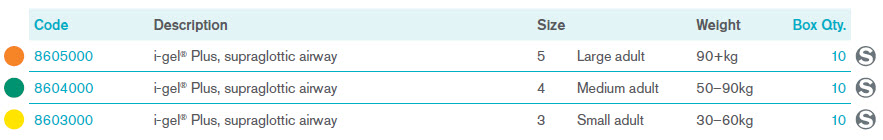

Code Description Size Weight Colour Box Quantity
8605000 i-gel® Plus, supraglottic airway 5 large adult 90+ kg orange 10
8604000 i-gel® Plus, supraglottic airway 4 medium adult 50 - 90 kg green 10
8603000 i-gel® Plus, supraglottic airway 3 small adult 30 - 60 kg yellow 10

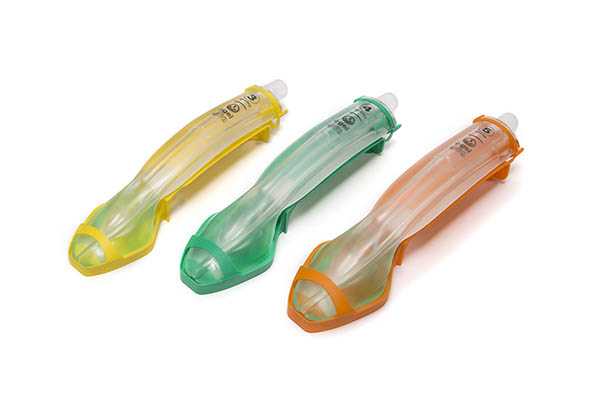

igel_plus_image_landing_page_image

If you would like to try any of the i-gel® products or maybe just ask a question then please get in touch



Make an enquiry

Some or all of the contents of this page may not be applicable to the USA. For details regarding product availability, information and technical support in North America, please contact Intersurgical Inc at support@intersurgicalinc.com.
