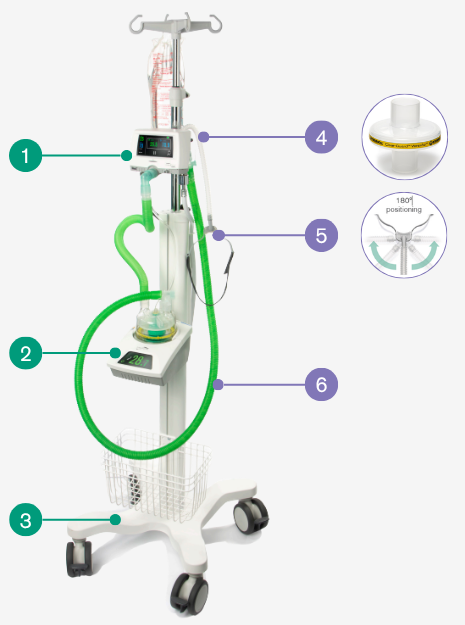

Versi-flo™

Equipment:

1. InterFlow™ respiratory gas blender
Single or multi-patient system with dual float auto fill chamber and integrated tube management system..

2. InterActive™ respiratory humidfier
Large colour touch screen display with one touch start-up, top mounted features and IR water level sensing.

3. Mobile equipment stand
Robust and and fully adjustable with optional gas cylinder kit for patient transfer. For more information please visit the product page.

Consumables:

4. Clear-Guard™ Versi-flo™ breathing filter
For multi-patient breathing system use

5. i-flo™ A high flow nasal cannula
Includes a unique, 180° swivel elbow to simplify positioning and a flexible, semi-rigid facemount to ensure stable therapy delivery.

6. Versi-flo heated wire breathing system
Single or multi-patient system with dual float auto fill chamber and integrated tube management system

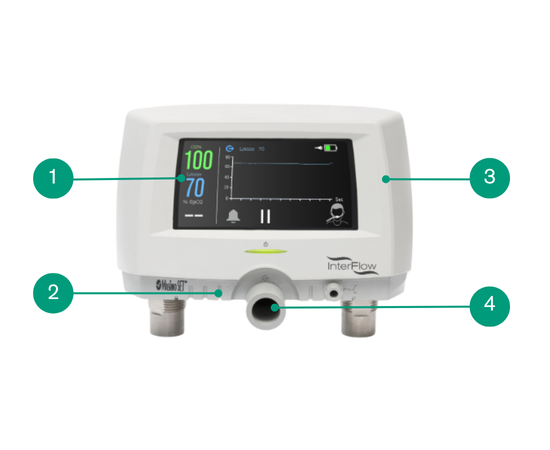

The InterFlow is a gas blender designed to deliver a continuous flow of blended oxygen and medical air. In contrast to mechanical blenders, InterFlow is electronic and is operated via the touch screen. The blending of medical air and oxygen is controlled by valve motors, these motors allow for the precise blending and delivery of gases to the patient.

InterFlow includes intergrated oxygen flow and presssure sensors, a back-up battery and optional Masino SET^® SpO₂ monitoring.


1. Adaptive alarms: Adaptive, intelligent alarms monitor the output flow and patient pressure for unexpected variances

2. SpO₂ monitoring: An optional Masimo SET® SpO₂ sensor* can be connected to the device to continuously monitor the patient’s blood oxygen saturation and pulse

3. User interface: The intuitive user interface and display is navigated via an inbuilt 4.2” colour touchscreen

4. Integrated sensors: The internal thermal mass flow sensor and paramagnetic oxygen sensor ensure a precise therapy delivery and minimise O₂ waste

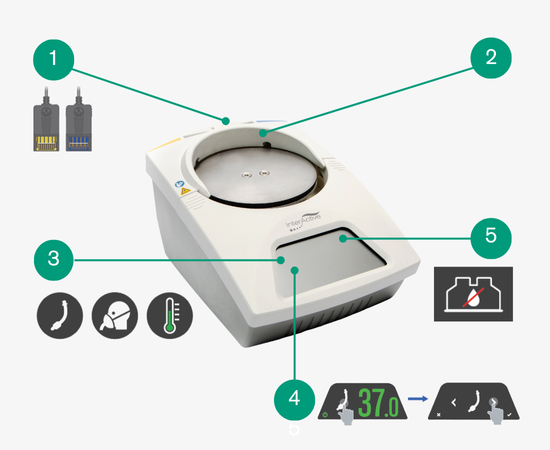

The InterActive respiratory humidifier is the perfect platform for use with our Versi-flo™ Nasal High Flow system. InterActive is simple to set-up and ready to go with one-tap on the top mounted, colour touch screen display.

The configurable temperature setting mode gives control to the clinician to manage optimal patient humidification and comfort as required.


1. Top mounted leads: Colour coded for quick and easy set-up

2. Inferred water level sensing: The humidifier will alarm if the water level in the humidification chamber drops too low

3. Mode selection: Invasive, non-invasive and manual mode options, including last used settings memory

4. Touch-screen display: The intuitive user interface is navigated via a 4.2” colour touch-screen

5. Alarm indication: Pictorial alarm display for fast error identification and resolution

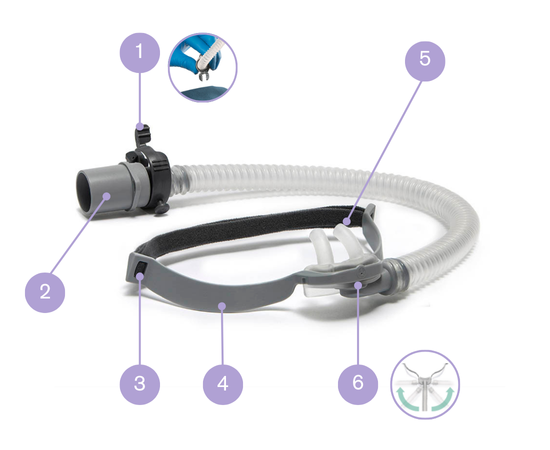

The Intersurgical i-flo A cannula is a single use product for the delivery of Nasal High Flow. The cannula is intended for use with adult patients in a hospital environment.  The i-flo A cannula is available in three sizes – small (S), medium (M) and large (L), all sizes can be used with flows up to 70 L/min when used within the Intersurgical Versi-flo Nasal High Flow system.


1. Tube support clip: Secures and supports the cannula and breathing system by attachment to the patient’s clothing.

2. Swivel connector: 22M ISO breathing system taper. Connecting tube Providing noise free, flexible connection to the breathing system

3. Head strap: Adjustable and elasticated to achieve a secure fit for all patients

4. Face mount: Flexible, semi-rigid anatomical design helps reduce strap pressure and increases comfort and patient tolerance

5. Nasal prongs: Three sizes and a soft contoured shape for optimal performance, comfort and fit

6. 180° rotating elbow: For quick, adaptive positioning

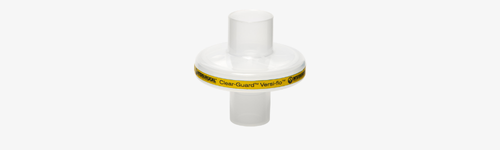

A lightweight, low volume single-use filter to allow reuse of the Versi-flo multi patient single limb breathing system as required.

The Clear-Guard Versi-flo breathing filter is for use between the patient end of the heated wire limb and the i-flo A cannula.

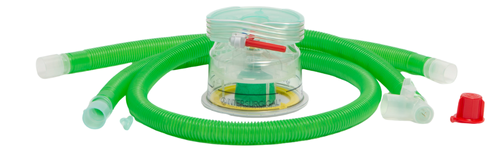

The Versi-flo single limb breathing system is a multi patient heated wire breathing system verified for reuse up to 24 hours when used with the Clear-Guard™ Versi-flo filter. The breathing system includes Intersurgical’s unique dual float auto fill humidification chamber and dust cap for protecting the system between uses.
