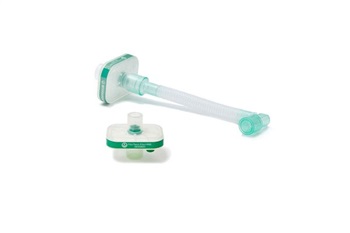

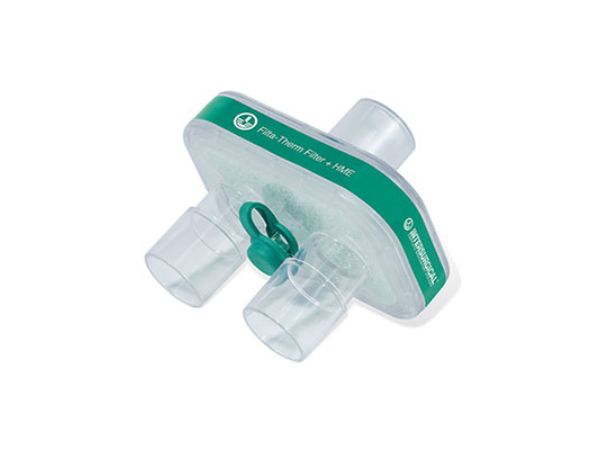

Heat and moisture exchanging filters (HMEFs)
| Filter efficiency | >99.999% |
| Moisture loss | 8.3 mg H2O/l |
| Calculated moisture return | 30.3 mg H2O/l |
| Resistance at 30L/min | 1.1 cm mg H2O/l |
| Resistance at 60L/min | 2.5 cm H2O/l |
| Compressible volume | 65 ml |
| Weight | 44 g |
| Connectors | 22F-22M/15F |
| Minimum tidal volume | >200ml |
| Filtration efficiency | >99.999% |
| Moisture loss | 9.3 mg H2O/l |
| Calculated moisture return | 29.5mg H2O/l |
| Resistance at 30L/min | 1.1 cm H2O |
| Resistance at 60L/min | 2.5 cm H2O |
| Compressible volume | 66 ml |
| Weight | 42 g |
| Connectors | 22F-22M/15F |
| Minimum tidal volume | >200ml |
| Filtration efficiency | >99.999% |
| Moisture loss | 9.3 mg H2O/l |
| Calculated moisture return | 29.5 mg H2O/l |
| Resistance at 30L/min | 1.0 cm H2O |
| Resistance at 60L/min | 2.4 cm H2O |
| Compressible volume | 65 ml |
| Weight | 43 g |
| Connectors | 22F-22M/15F |
| Minimum tidal volume | >200ml |
| Filtration efficiency | >99.999% |
| Moisture loss | 9.3 mg H2O/l (filter only) |
| Calculated moisture return | 29.5 mg H2O/l (filter only) |
| Resistance at 30L/min | 1.4 cm H2O |
| Resistance at 60L/min | 3.8 cm H2O |
| Compressible volume | 65 ml (Filter only) |
| Weight | 49 g |
| Connectors | 22F-22M/15F |
| Minimum tidal volume | >200ml |
| Accessories | Fixed elbow (code 1997000, compressible volume 10ml) |
| Filtration efficiency | >99.999% |
| Moisture loss | 9.3 mg H2O/l (filter only) |
| Calculated moisture return | 29.5 mg H2O/l (filter only) |
| Resistance at 30L/min | 1.4 cm H2O |
| Resistance at 60L/min | 4.0 cm H2O |
| Compressible volume | 65 ml (Filter only) |
| Weight | 60 g |
| Connectors | 22F-22M/15F |
| Minimum tidal volume | >200ml |

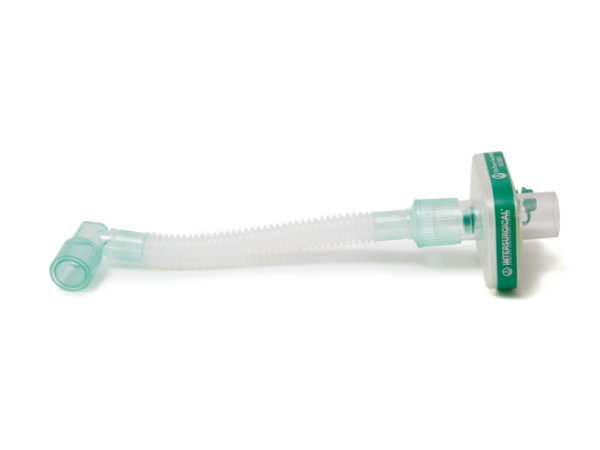

| Accessories | Flexible catheter mount with fixed elbow (code 3501000, compressible volume 45ml) |
| Filtration efficiency | >99.999% |
| Moisture loss | 9.3 mg H2O/l (filter only) |
| Calculated moisture return | 29.5 mg H2O/l (filter only) |
| Resistance at 30L/min | 1.1 cm H2O |
| Resistance at 60L/min | 2.8 cm H2O |
| Compressible volume | 65 ml (Filter only) |
| Weight | 57 g |
| Connectors | 22F-22M/15F |
| Minimum tidal volume | >200ml |
| Accessories | SupersetTM catheter mount (code 3504000, compressible volume 22-43ml) |
| Filtration efficiency | >99.999% |
| Moisture loss | 9.9 mg H2O/l |
| Calculated moisture return | 28.9 mg H2O/l |
| Resistance at 30LPM | 1.2 cm H2O |
| Resistance at 60LPM | 2.4 cm H2O |
| Compressible volume | 70 ml |
| Weight | 45 g |
| Connectors | 22M-22M- 22M/15F plus luer port |
| Minimum tidal volume | >210ml |
