Hydro-Therm™ HME range

A dedicated range of heat and moisture exchangers designed to replicate the functions of the body's upper airway by conserving expired heat and moisture and returning these to the patient during inhalation. The Hydro-Therm™ is a small volume, ligthweight device which is clinically suitable over a wide range of patient sizes.

Heat and moisture exchangers (HMEs)

Product

Enquiry

1442000

Box quantity 30

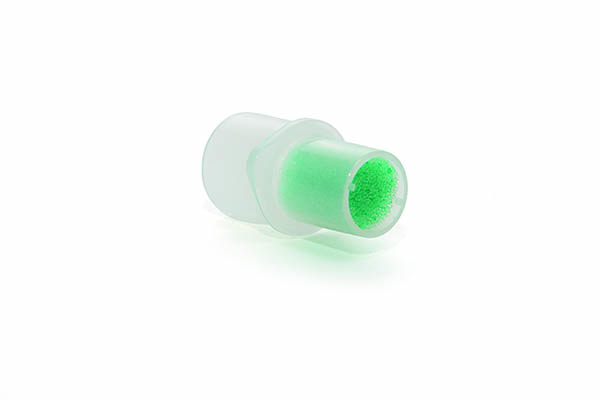

Hydro-Therm™ Micro HME

Type of filter	HME
Moisture loss	9.2 mg H₂O/L
Calculated moisture return	29.5 mg H₂O/l
Resistance at 5L/min	0.3 cm H₂O
Resistance at 10L/min	0.8 cm H₂O
Dead space	2.2 ml
Weight	2.8g
Connectors	15F/15M
Minimum tidal volume	>10ml

All quoted performance figures are mean values.

Enquiry

1850000

Box quantity 20

Hydro-Therm™ HME

Moisture loss	7.8 mg H2O/l
Calculated moisture return	30.8 mg H2O/l
Resistance at 30L/min	0.5 cm H2O
Resistance at 60L/min	1.6 cm H2O
Compressible volume	20 ml
Weight	11.8 g
Connectors	15M-22M/15F
Minimum tidal volume	>60ml

All quoted performance figures are mean values.

Enquiry

1855000

Box quantity 20

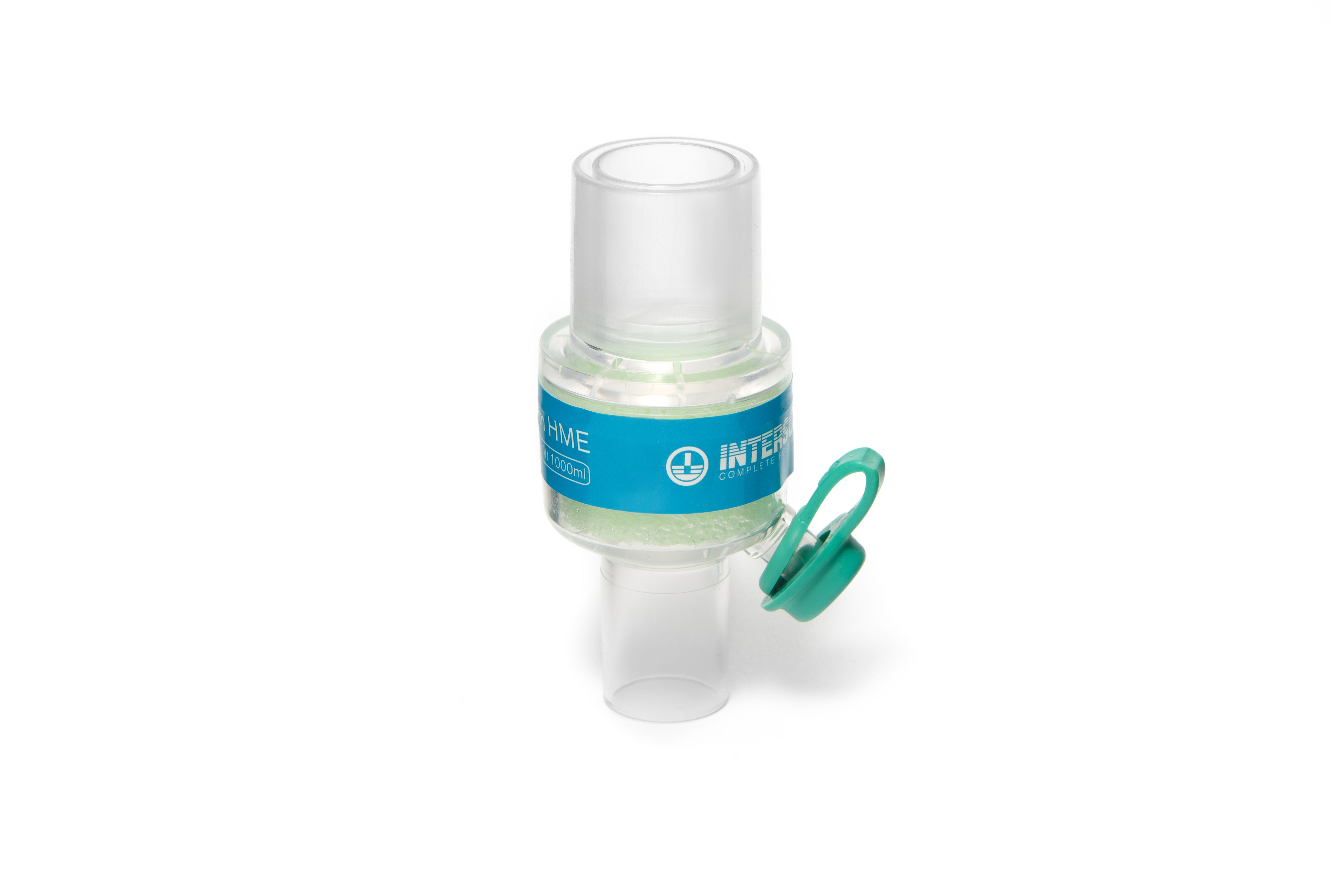

Hydro-Therm™ HME with luer port

Moisture loss	7.8 mg H2O/l
Calculated moisture return	30.8 mg H2O/l
Resistance at 30L/min	0.5 cm H2O
Resistance at 60L/min	1.6 cm H2O
Compressible volume	20 ml
Weight	11.8 g
Connectors	15M-22M/15F plus luer port
Minimum tidal volume	>60ml
